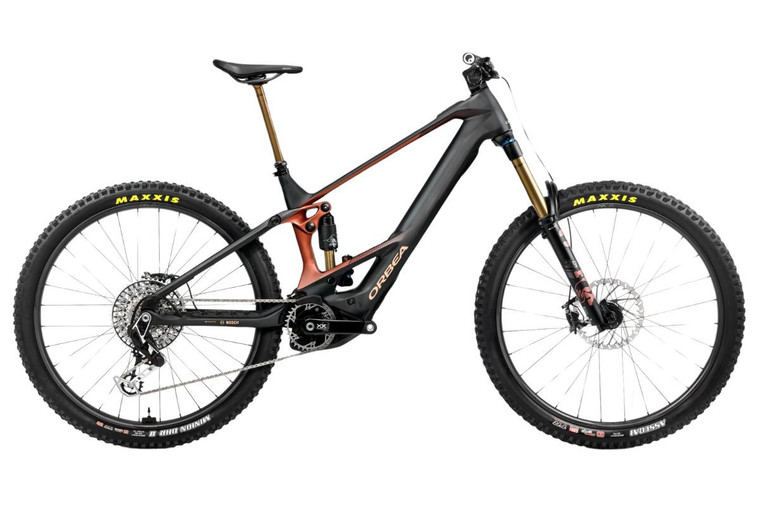

The Orbea Wild M-LTD 25 presented byEscapais abikebuilt without compromise. Lightweight and fully optimized, it’s ready for action with the latest Bosch motors and race-specific components.
The Orbea Wild M-LTD 25isa bike designed to deliver maximum performance with optimal weight distribution, 170mm of travel, and Gravity-oriented geometry. It’s one of the lightest full-power bikes, featuring the latest Bosch motor and a 600Wh battery, with no compromises made to achieve that weight; no distractions or superfluous elements—just what you need to ride hard.
ADVANCED FRAME DESIGN
Lightweight for Great Performance
The Wild masters the wildest trails while always feeling energetic and responsive—unlike the handling of many e-bikes. This balance between lightness and stiffness is essential and one of the key factors behind the Wild’s superb performance.
OMR Carbon
High-modulus, high-strength fibers, combined with the most advanced carbon manufacturing techniques, allow us to use less material while maintaining strength and stiffness.
E-Optimized Stiffness
An e-bike must be 10 percent stiffer than an equivalent mechanical bike to deliver similar performance. Achieving this without adding weight requires a no-compromise frame design.
The frame’s specific design allows us to add stiffness near the bottom bracket, while our SBS battery system eliminates any complexity and other compromises.
OPTIMAL WEIGHT DISTRIBUTION
Lower center of gravity.
Our SBS system allows us to significantly lower the center of gravity by placing the battery closer to the motor, while keeping the weight centered for a more maneuverable and stable Wild.
Light, lighter, lightest
The best materials, the most ingenious designs, and key technologies like our SBS explain why the Wild is one of the lightest full-power bikes. When you lighten everything at once, you achieve greater performance, while also gaining longer range and more efficient handling.
170MM OF GRAVITY-ORIENTED TRAVEL
The Wild offers 170 millimeters of front and rear travel, with custom Fox Float X or Float X2 shocks and a Fox 38 fork. More travel and new kinematics make this Wild ready for the wildest trails and the most capable version to date
Gravity-Oriented Kinematics
The suspension required for an e-bike is complex because it needs maximum traction to handle the extra power, but it also needs to cope with the inevitable impacts resulting from the bike’s speed and weight. The magic happens in the mid-travel range, where bikes spend 90% of their time.
Leverage Ratio
Progressive -40%
Greater progressiveness allows a bike to absorb minor impacts and withstand harder hits. Flattening the suspension curve results in more predictable performance.
Anti-Squat
Stable Pedaling Anti-squat 100%
This keeps the suspension under control when you pedal hard, adding stability and control.
Anti-Rise
Controlled braking. 40–50% anti-rise
The rear pivot position decouples braking forces from the swingarm assembly, reducing braking response.
GEOMETRY FOR SPEED
Lower saddles allow for faster bikes
With its short, straight Vertical seat tube, the Wild gives you the flexibility to choose dropper posts that work across multiple frame sizes. Drop the saddle all the way down when the terrain gets rough—long-travel dropper posts are the only way to go.
Thanks to our Steep’n’Deep design, most riders can use a 210mm dropper post. If you need a size L or XL, you can use one up to 240mm.
E-optimized Geometry
Low Top Tube
Choose your preferred riding position before selecting a frame size based on your height.
Long, low, and aggressive
Great stability with natural handling and confidence at high speeds.
Adjusted bottom bracket height
Bottom bracket height and crank length designed for better performance on technical climbs.
Steep seat tube angle
Optimal pedaling position.
MULLET-COMPATIBLE
Whether you’re looking for the top speed of a 29” or the fun of a 27.5”, Wild has the answer.
Two linkages allow you to adjust the rear wheel size without altering the geometry.
ENDLESS POWER AND UNLIMITED RANGE
Packed with all the power you could ask for and ready to roar, the Wild is pure fun on both the most challenging climbs and the wildest descents. The combination of the new Bosch motors and a selection of state-of-the-art batteries delivers incredible range, power, and Control.
Powerful Bosch motor—lighter and quieter.
Intelligent Bosch Performance CX system.
The 85Nm Bosch motor needs no introduction, with its inexhaustible assistance and precise response. Its improvements provide even more precise control, while also being quieter, lighter, and offering lower pedaling resistance than the previous version.
. More control
. Lighter and quieter
. Less pedaling resistance
More sensitive sensors provide greater control
The improved sensors in the new Bosch motor are faster and more precise, enabling more precise assistance for every situation.
eBike Flow app
The Bosch app lets you fine-tune the level of assistance and links directly to other mobile apps like Strava
Modular battery system / Up to 1000Wh
Our various battery options let you configure your Wild so you can ride however you want.
750Wh battery
For those seeking the freedom of the Wild’s massive 750Wh internal battery, it’s available for all sizes and offers a great balance between weight and range.
Lighter 600Wh option
The 600Wh battery is 1.3 kg lighter than the 750Wh model, yet it offers impressive range for long rides. The weight savings enhance the Wild’s already impressive handling, so choose this option if you’re looking for the ultimate performance.
250Wh Range Extender
Switching from the bottle cage mount to the Range Extender takes just seconds thanks to the secure sliding mechanism. Clip it on and enjoy 250Wh of extra battery power for your longest rides.
READY FOR ACTION
The Wild is ready for any challenge thanks to its rugged components. It may be the lightest full-power bike, but it’s equipped without making any compromises.
Sturdy Forks
Full-power bikes need stiffer, more robust forks. Wild features the Fox 38, a benchmark in the market.
Durable Tires
All models come with Maxxis Double Down rear tires, with the option to choose a DH casing through MyO.
DH-Certified Wheels
The Wild is equipped with Oquo MC32 wheels. These are the wheels our teams use in Enduro and DH races.
PERFORMANCE THROUGH SIMPLICITY
We believe in enhancing performance through simplicity, which means eliminating everything unnecessary and adding only what improves the experience.
Sealed internal cables
Shorter cables, less rattling, and more direct cable routing improve performance.
Simple cable routing
Fully routed cables for easier maintenance
Ergonomic cargo charging port
Say goodbye to poorly sealed charging ports located in odd, non-ergonomic places.
Sealed bearings
Our sealed bearings stay dry and clean, allowing the suspension to perform better for longer.
Clean Cockpit
Fewer cables, less noise, fewer distractions, more fun.
HIGH-PERFORMANCE
Developed on the most demanding trails
How do you take a bike as capable as the Wild just a little further? Testing at EDR with our Orbea Enduro team has taken us this far. For the ultimate push, we’re racing the Wild in the DH World Cup.
